When building an app, you want to reuse components and queries across different apps. Modules are what you need. A module comprises components and queries. You can insert a module into an app or other modules (referred to as external apps in the rest of this document) and it functions just like a single component.

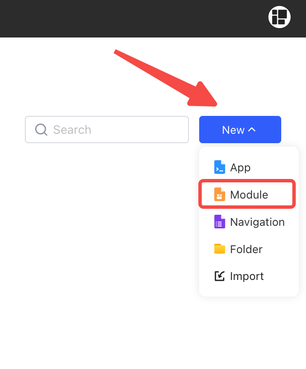

Select New > Module at the top right of homepage to enter the module editor.
You can configure a module's settings in the Settings tab of data browser:
Input: parameters passed into the current module from external apps.

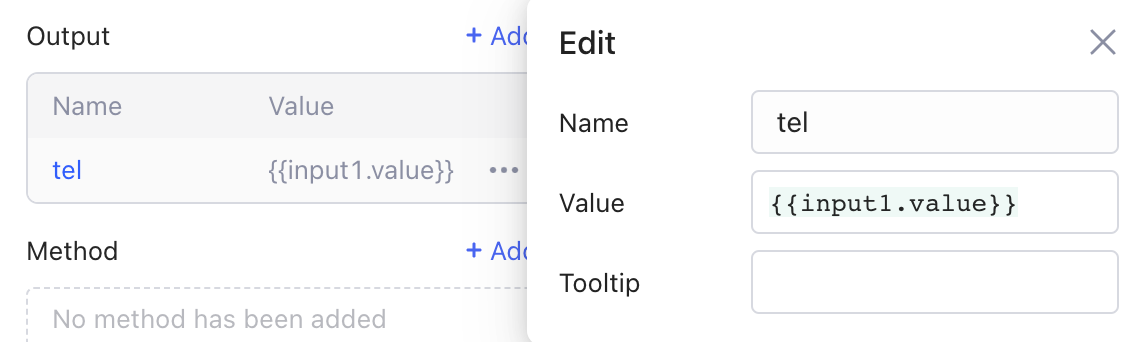

Output: data exposed to external apps.

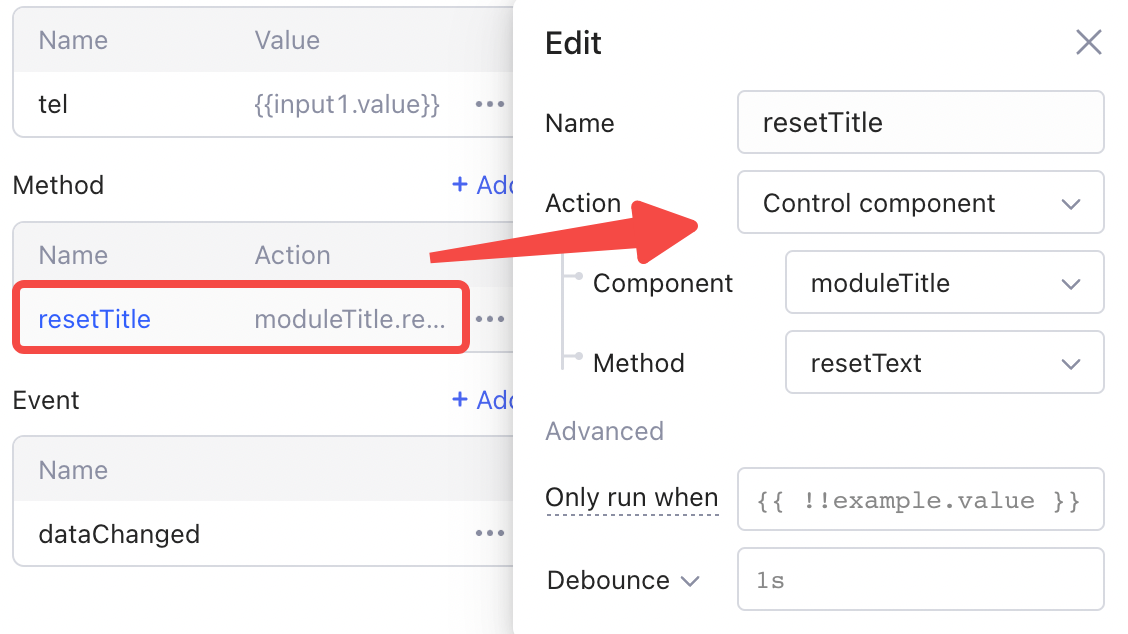

Method: methods exposed to external apps. For example, you can define a module with a resetTitle
method, so that external apps can call it to reset the module's title.

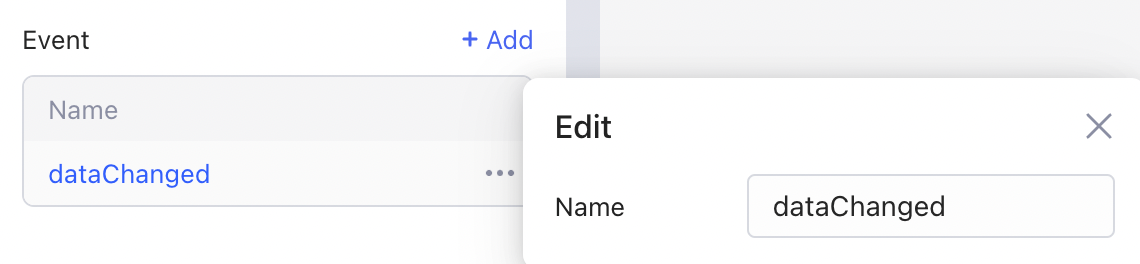

Event: module events can be handled by external apps. For example, you can define an event named dataChanged
, so that external apps can add event handlers to it once the dataChanged
event is fired by the module.
For more details, check out chapter Module settings.

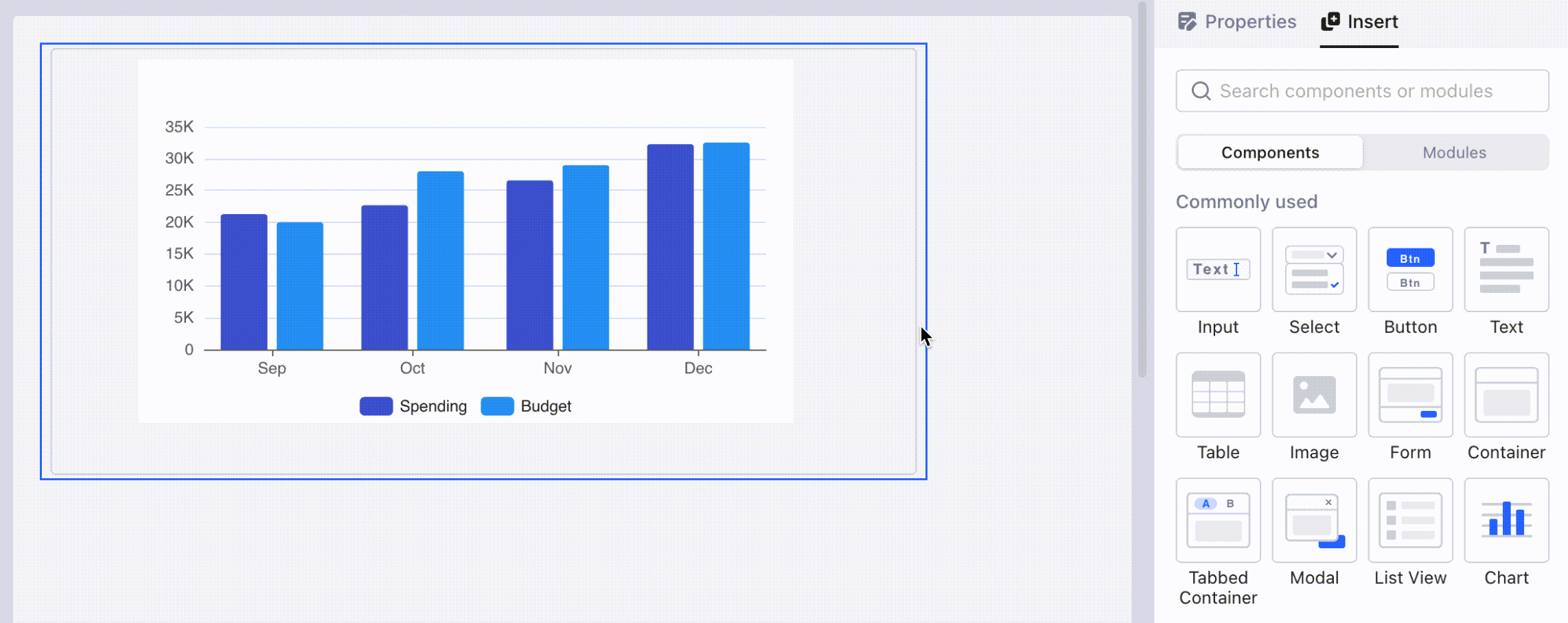

The other areas of the module editor are similar to those of the web app editor. Insert components and create queries the same way as your app-building process.In the module editor, you can resize a module by dragging the bottom-right corner to the desirable default size. Toggle the button in the Properties panel to control whether the component height scales with the container. **** This only works for the fixed-height components within the module.

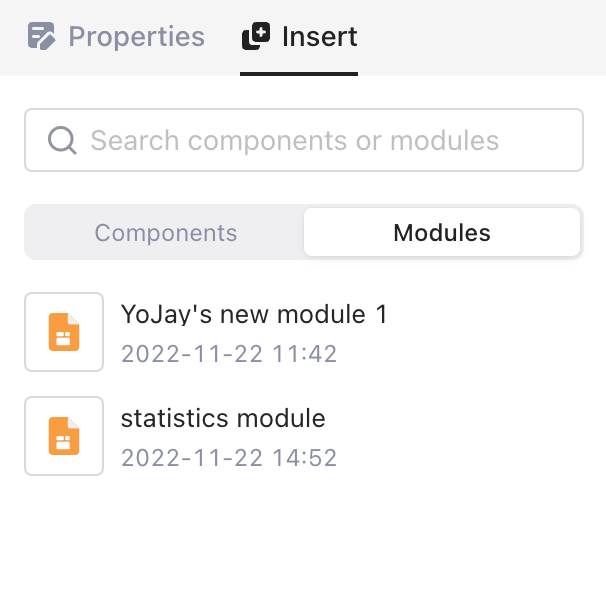

When editing an app or module, select Insert > Extensions > Modules to display the modules that you have access to.
Then drag and drop the module onto the canvas, and set input parameters, change styles inside the module's Properties panel.
Inspect the data exposed by the module in the data browser.

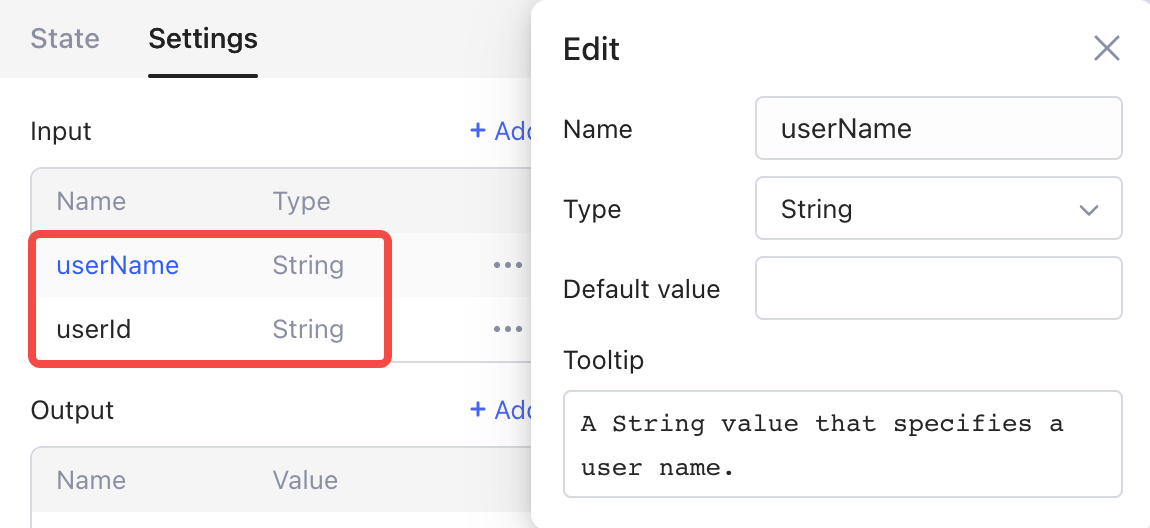

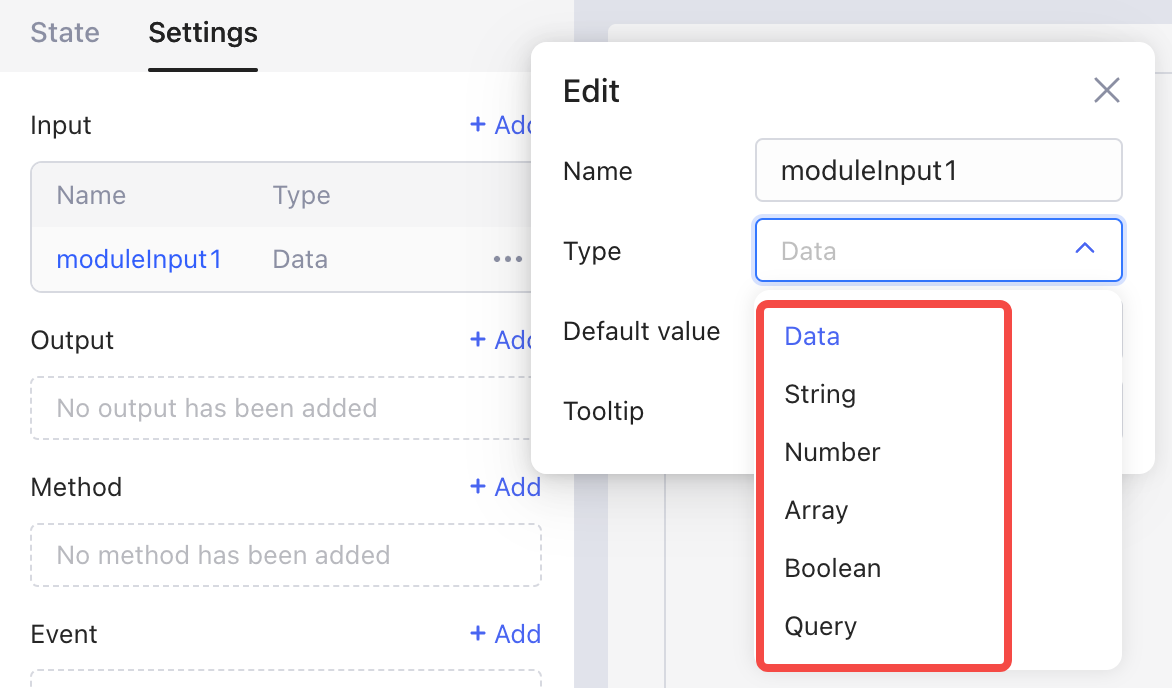

Module inputs are parameters passed to the module from external apps. The supported input types are data, string, number, array, boolean, **** and query. The first five are data types. Choose data to not restrict it to a specific data type. When choosing the type of query, you can pass in a query from external apps and trigger it inside the module.Then you can reference a module input parameter by its **name**.
This section guides you through the steps to build a statistics module and reuse it in an app.
Create module inputs:

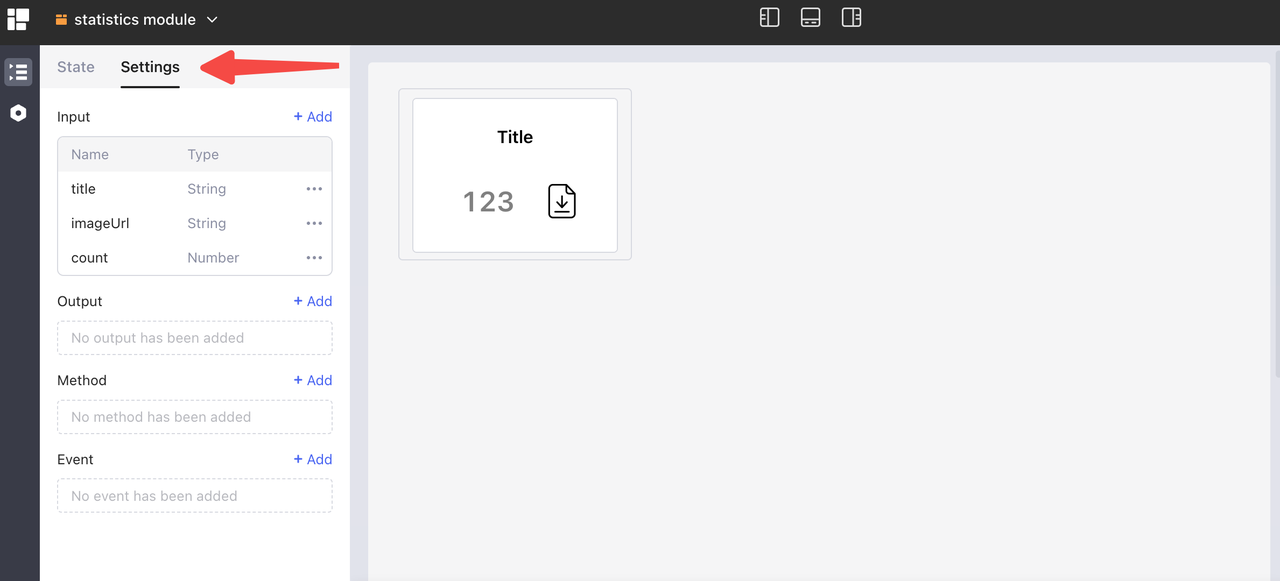

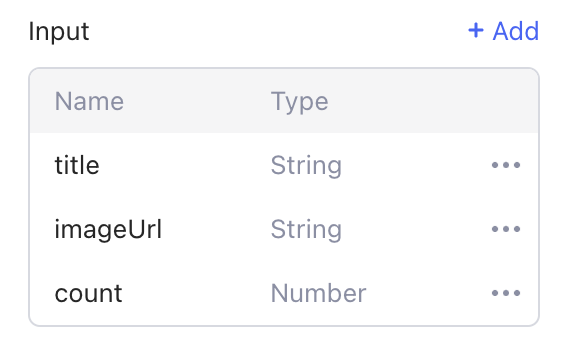

In the Settings tab, click + Add to create a new module input, and then set its name, type, default value (optional) and tooltip (optional). In this example, three module inputs are added: two string inputs title
, imageUrl
, and a number input count
:
Design the module UI:
Insert a container into the module.
Add two text components and an image component to the container.
Adjust their properties, such as the layout, height, and style.

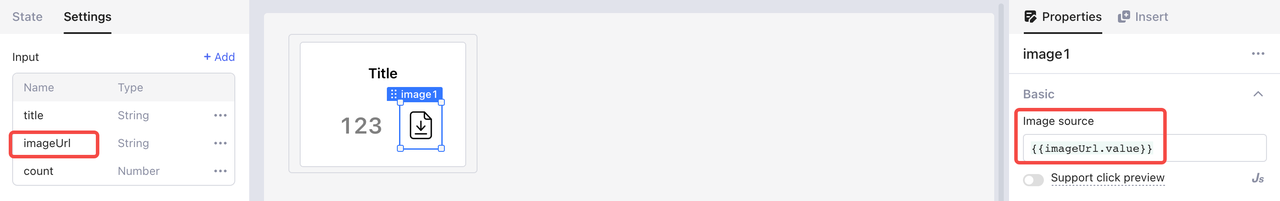

Bind the components' value to the module inputs. For example, the Image source of the image is bound to input parameter imageUrl.value
.

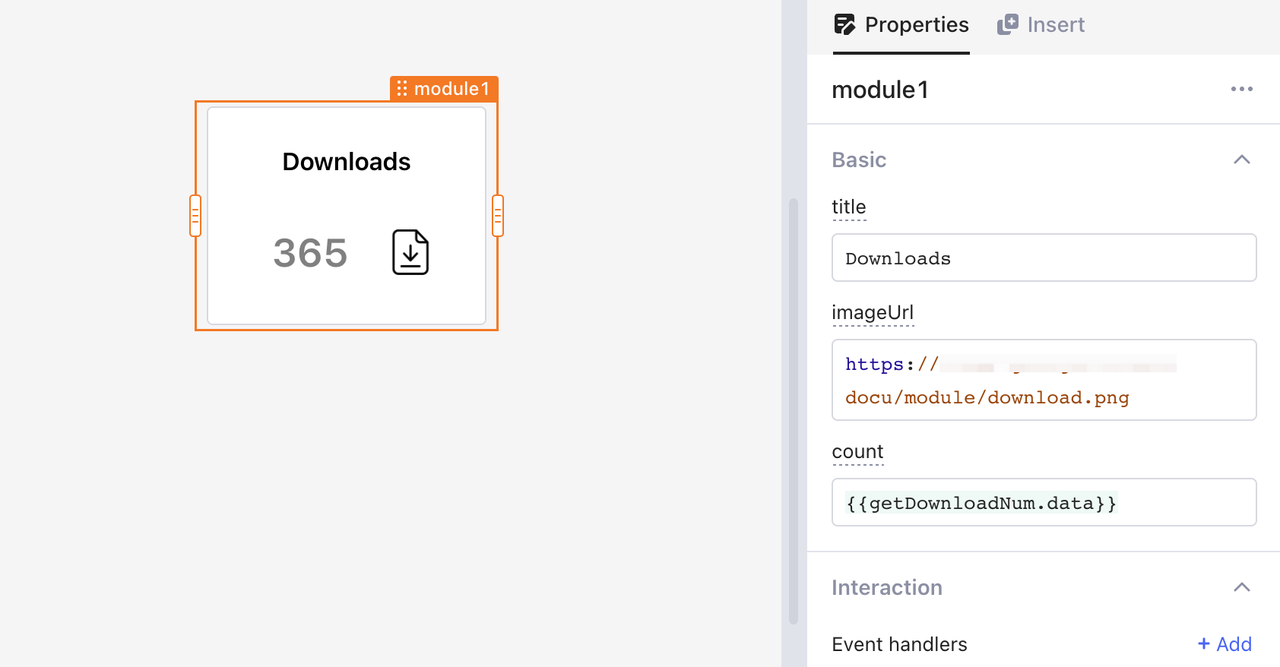

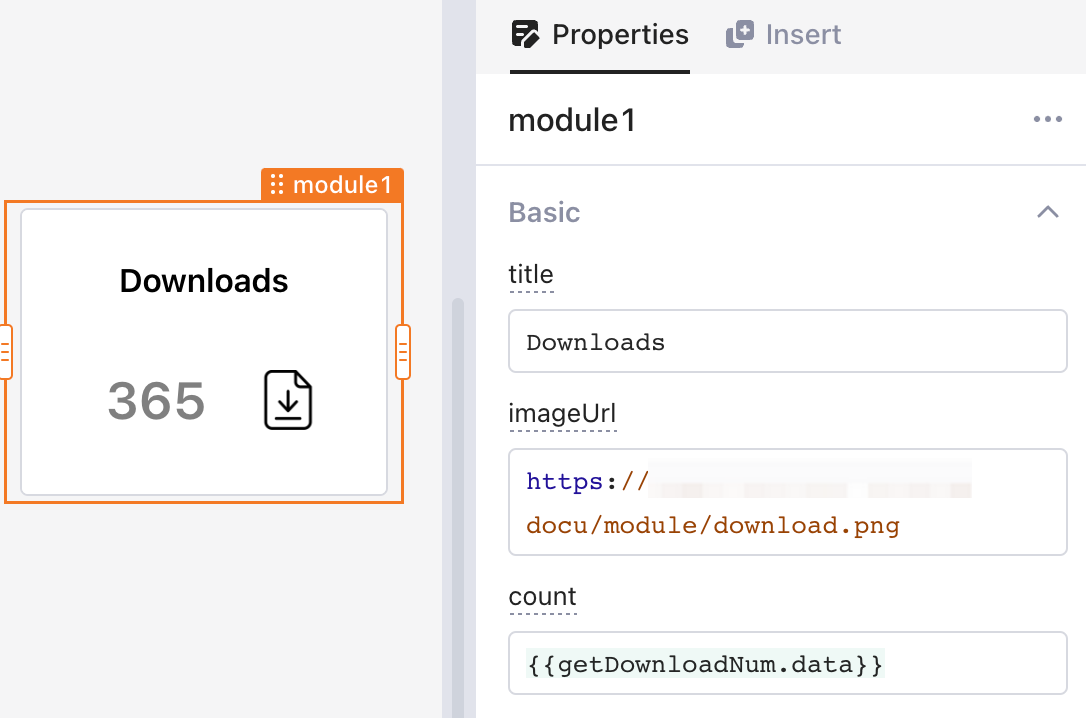

Insert the newly built module into an external app or module, and you can pass in values to configure its properties.

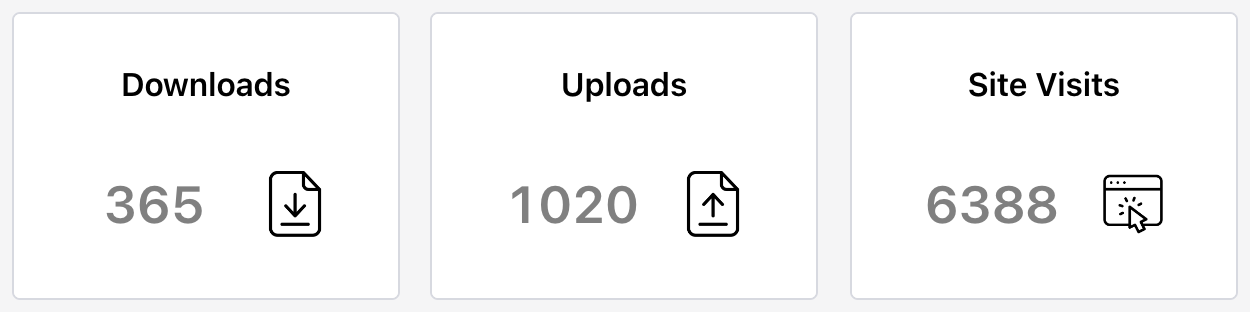

Reuse the module multiple times by passing different input values.

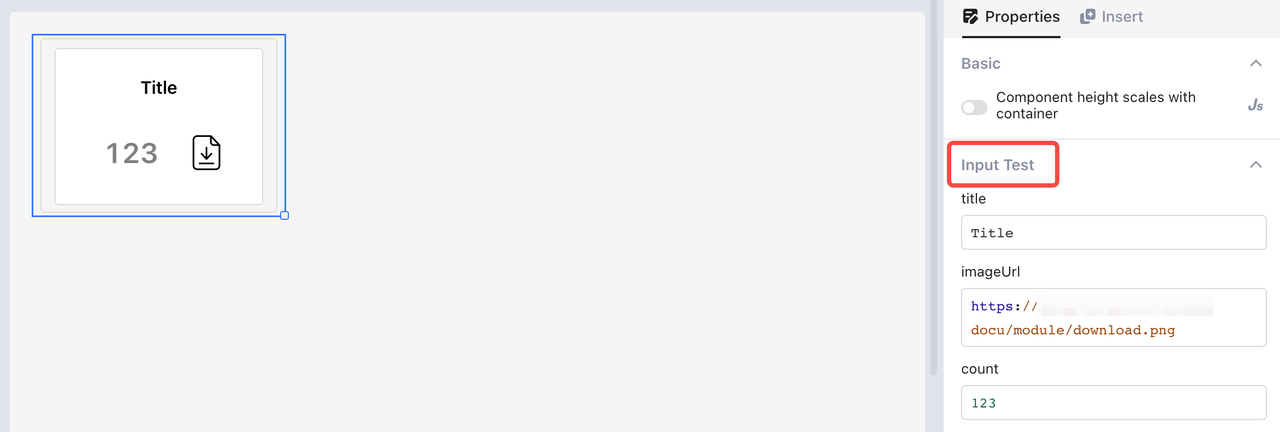

To quickly test the effectiveness of input parameters during editing a module, you can use the Input Test function.In the module editor, select the whole module to conduct tests with simulated input data in the Properties panel. In the example previously mentioned, you can set the test values for the three module inputs: title
, imageUrl
, and count
, as shown below:

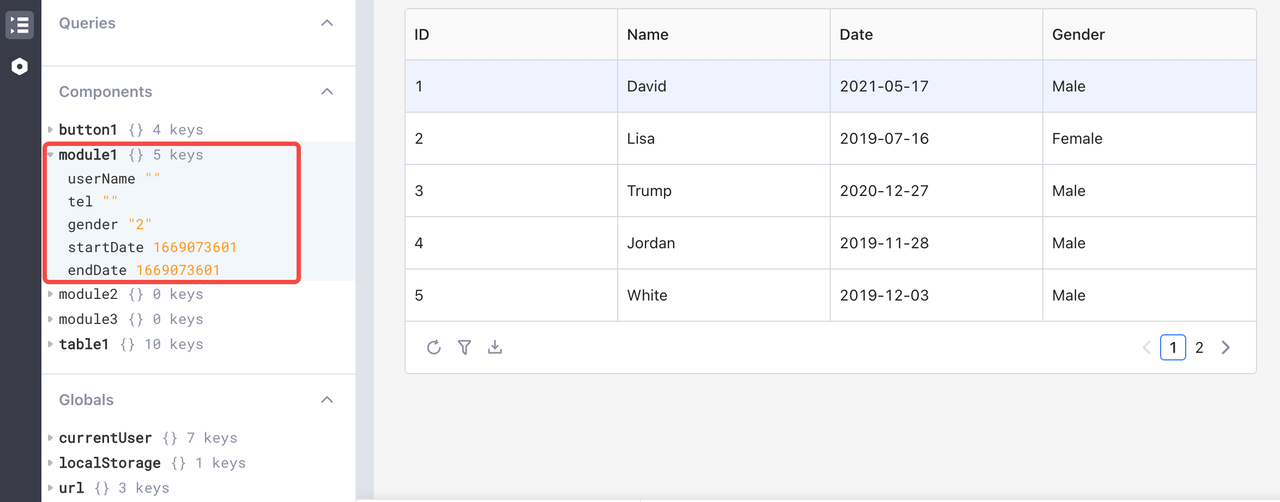

Module outputs are the data exposed to an app or other modules. You can inspect the outputs of a module in the data browser and access them via JavaScript code in {{ }}

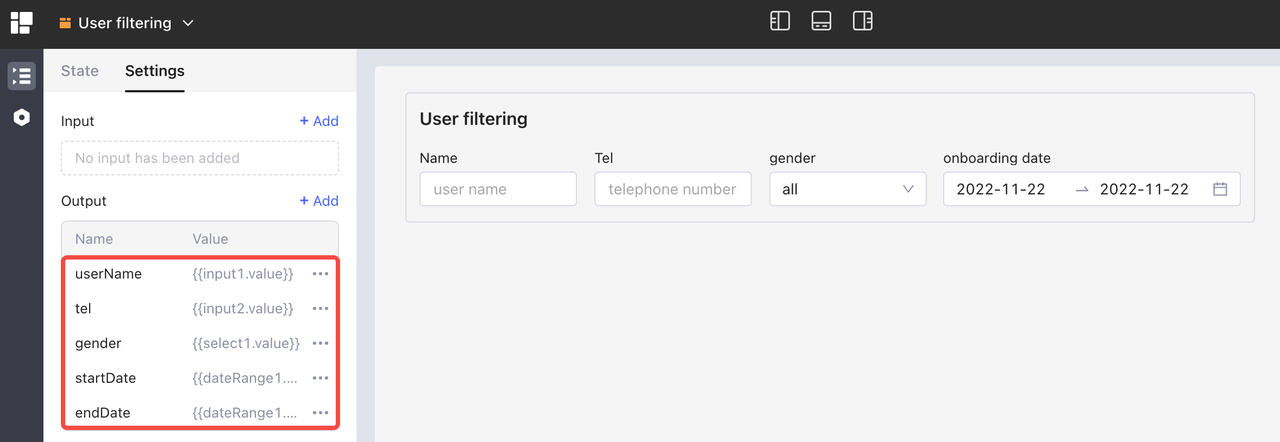

.The following example shows the outputs in a user-filtering module.

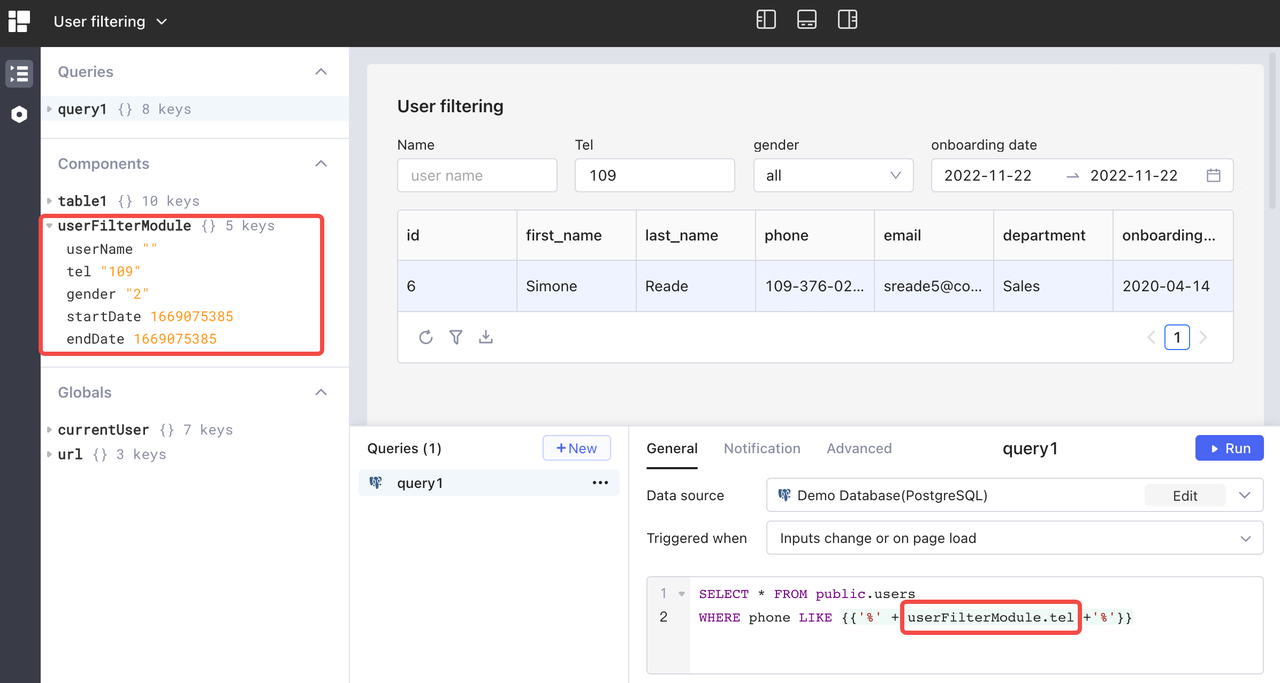

Then you can check out and reference the outputs of a module in apps or other modules using it.

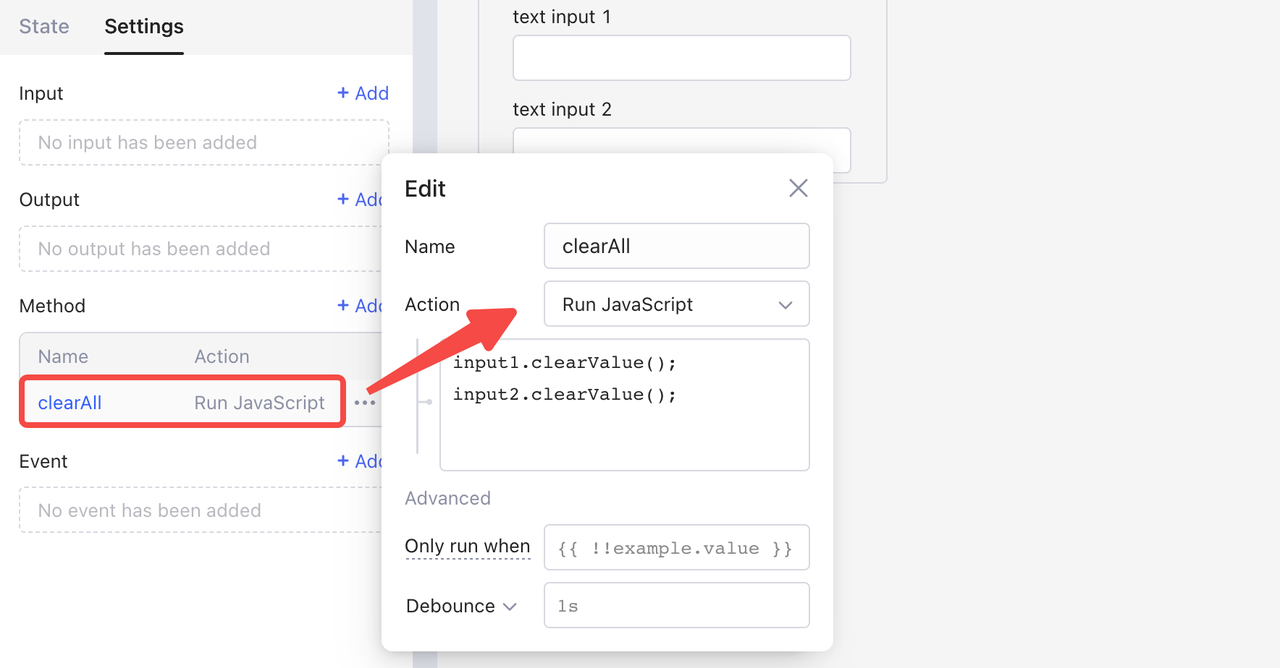

In the Settings tab, click + Add to create a new module method. Click the method to rename it and select an action. In the following example, the method clearAll
is designed to clear the content in both input boxes. To achieve this, select Run JavaScript as the action, and write JS code to call the clearValue
method of both two input components.
When creating a method for a module, you cannot create input parameters for the method and can only reference parameters within the scope of the current module.
When using modules, you can call a module method in two ways:

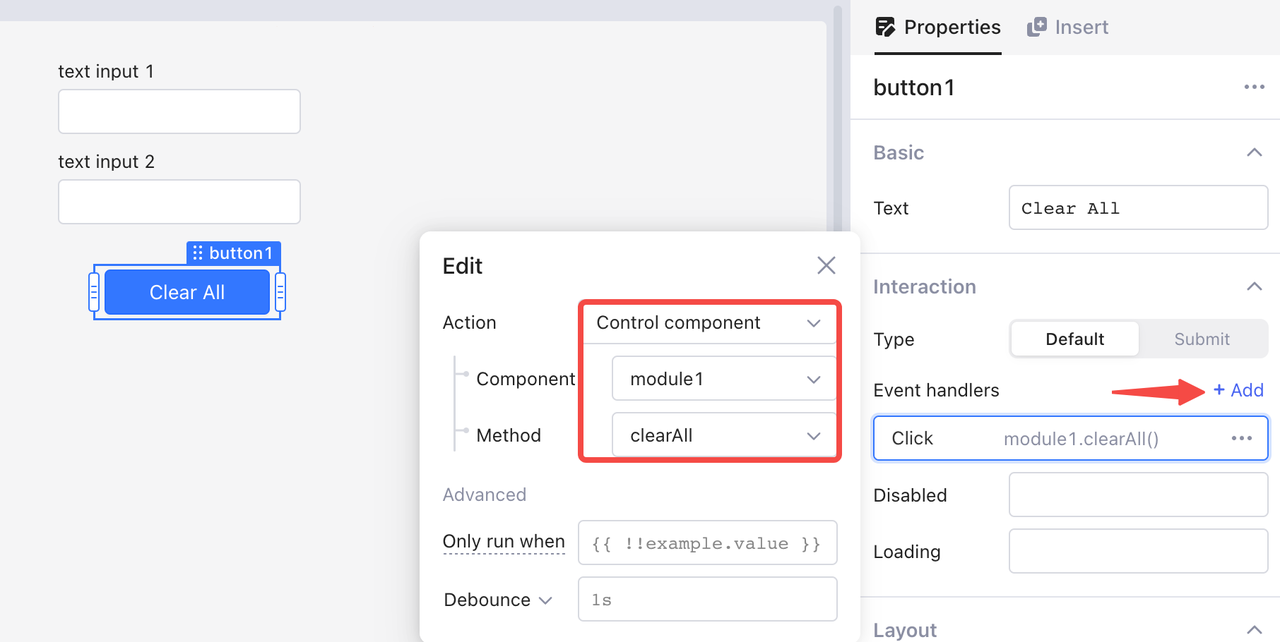

In event handlers, select Action > Control component, and then select the component and method.
Use dot notation in JavaScript queries. For example, module1.clearAll()
calls the method clearAll()
of module1
.

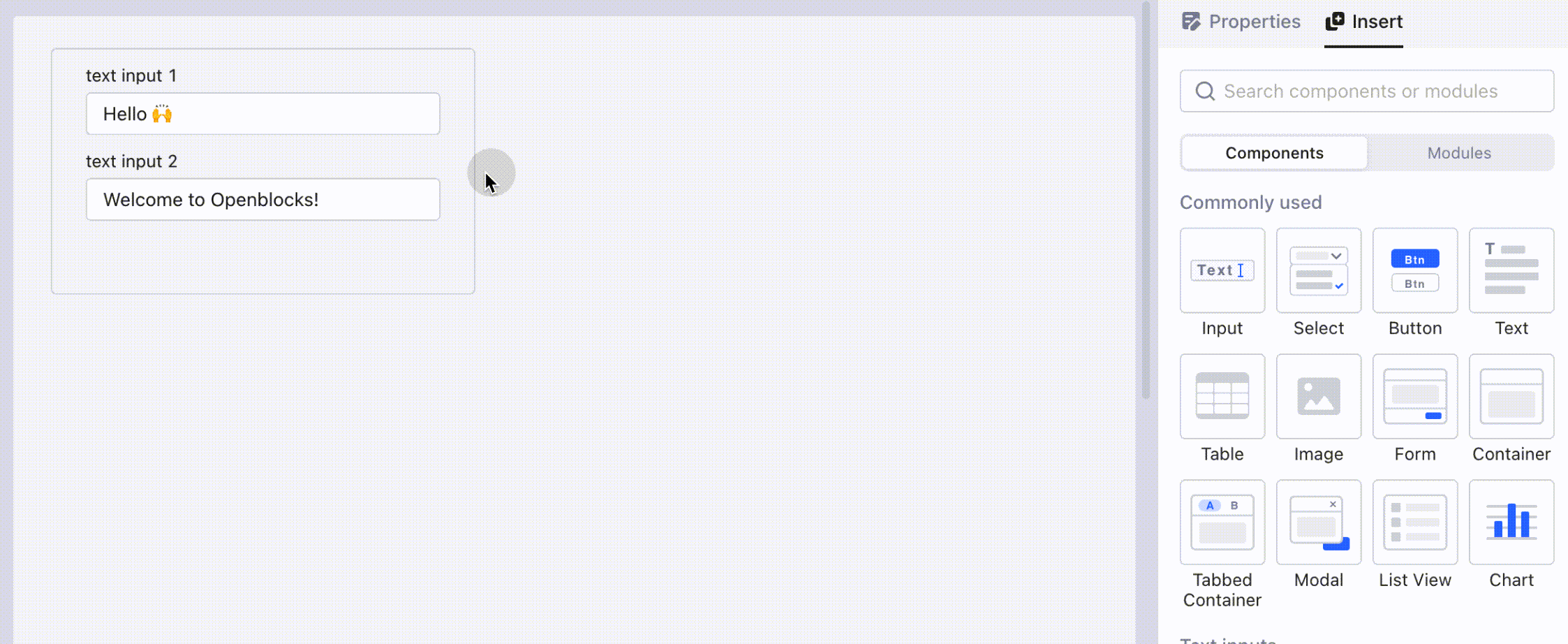

You can simulate testing method calling in the Method Test function.
Events are used to transfer signals from a module to external apps, such as defining orderPlaced
OrderModified
events for an order management module. You can add and fire events within a module, and deal with them using event handlers externally.

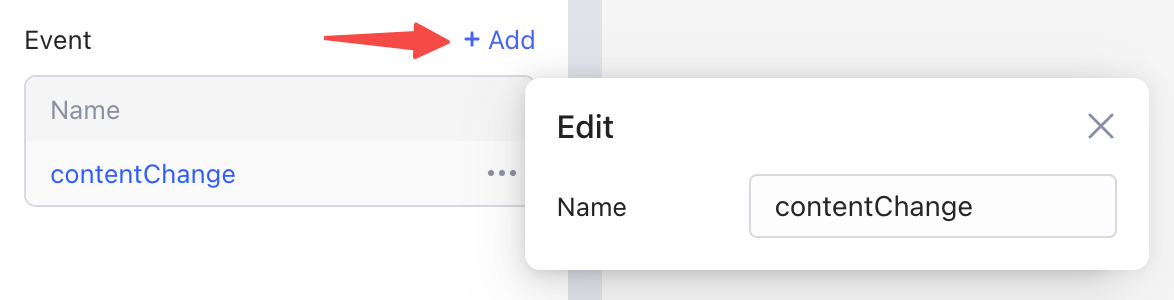

In the Settings tab, click + Add to create a new module event. Click the event to set its name.
In the following example, the event contentChange
is triggered when the content in any input box changes. You can trigger it in two ways:

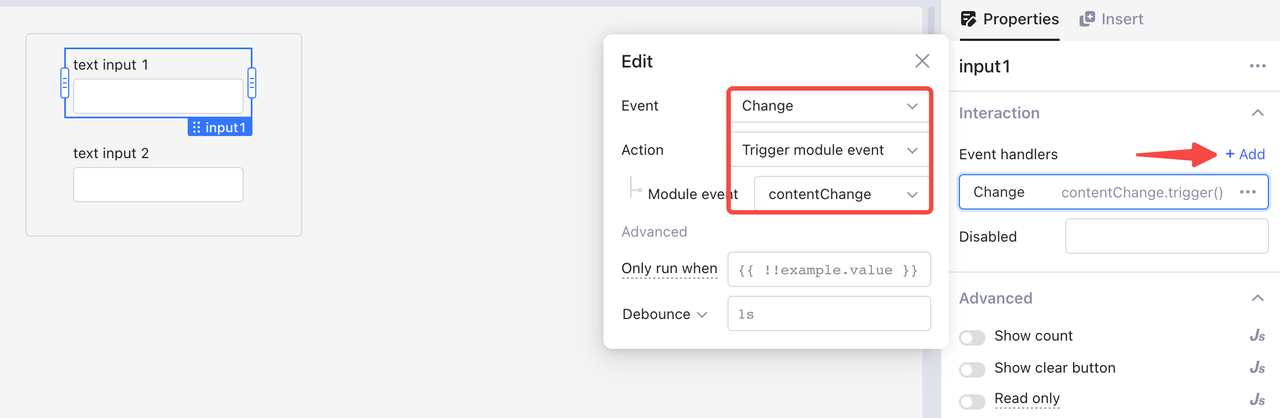

In Event handlers of both input components, click + Add, select Change as the component event and Trigger module event as the action, and finally select the module event contentChange
.
Use dot notation in JavaScript queries: contentChange.trigger()
.

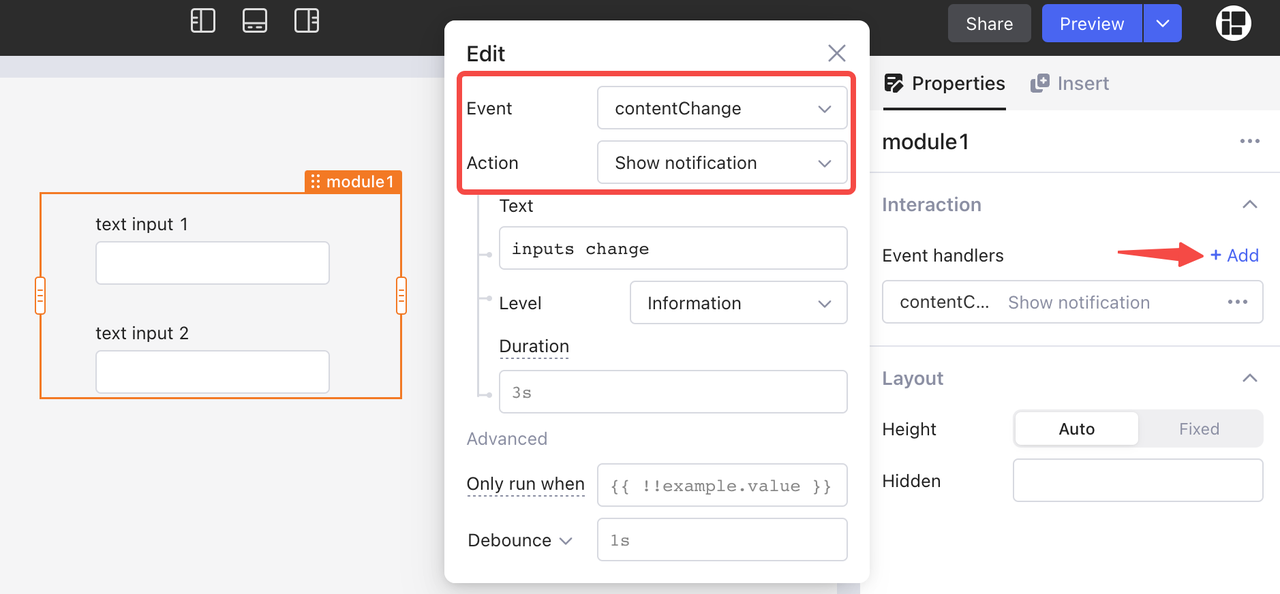

When an app uses a module, you can configure how the current app reacts to the module's events. For example, in Event handlers of module1
, click + Add, and select the module event contentChange
and the action Show notification.

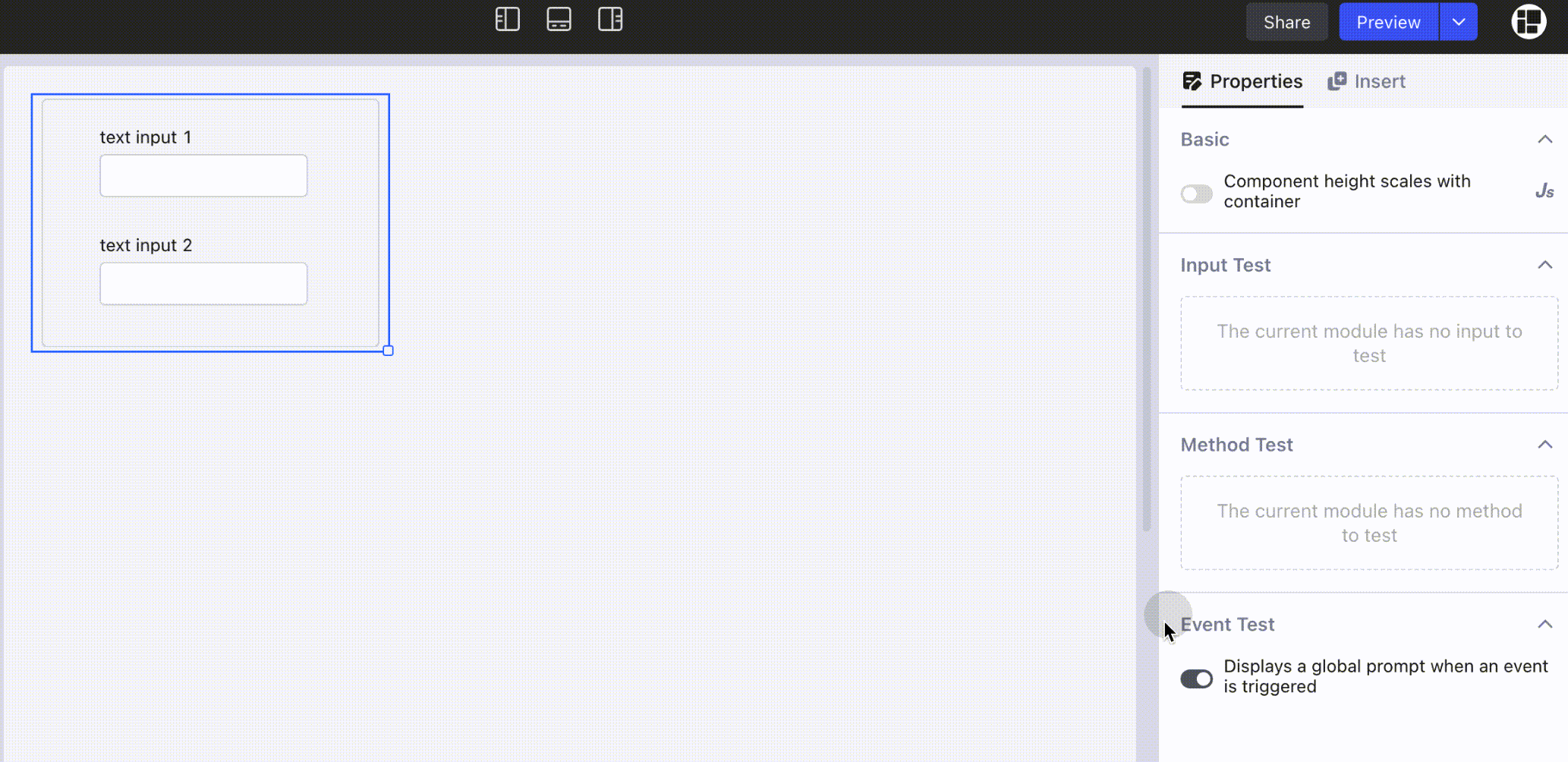

The following example conducts event tests in the Event Test section.
End users are not automatically granted permissions to view modules in apps or other modules they have viewing permissions with, because of that, you have to grant permission on modules as you do with apps. For more information, see Permissions for resources.
For an unpublished module, the apps and modules use its latest version; while for a published one, you need to publish it again to sync your latest changes.
PocketBlocks stores the history versions of your modules for your references. Click Preview > Publish at the top right. The release management of a module is identical to that of an app. For detailed information, see .
